SharePoint Conference Deep Dive – Social Architecture Slides! #spc12

As you’ve seen lately, I tried bringing you guys the most info from SharePoint Conference 2012 for the ones who couldn’t attend.
I couldn’t attend either, however Patrick Guimonet who is a SharePoint MVP is there and is sharing content on his own Blog but in French. I asked him if I could share the content he has but in English so more people can have access to the information and he thought it’s a good idea.

Here are the slides from the  Effective Search Deployment and Operation in SharePoint 2013  Presentation.  If you want to read the post in French or want to visit  the original post, you can find it here
[ #SPC12 ] SPC016 Deep Dive – Social Architecture (opens in a new tab)

SPC 2012 title slide for Deep Dive Social Architecture by Anup S Parameswaren, Program Manager

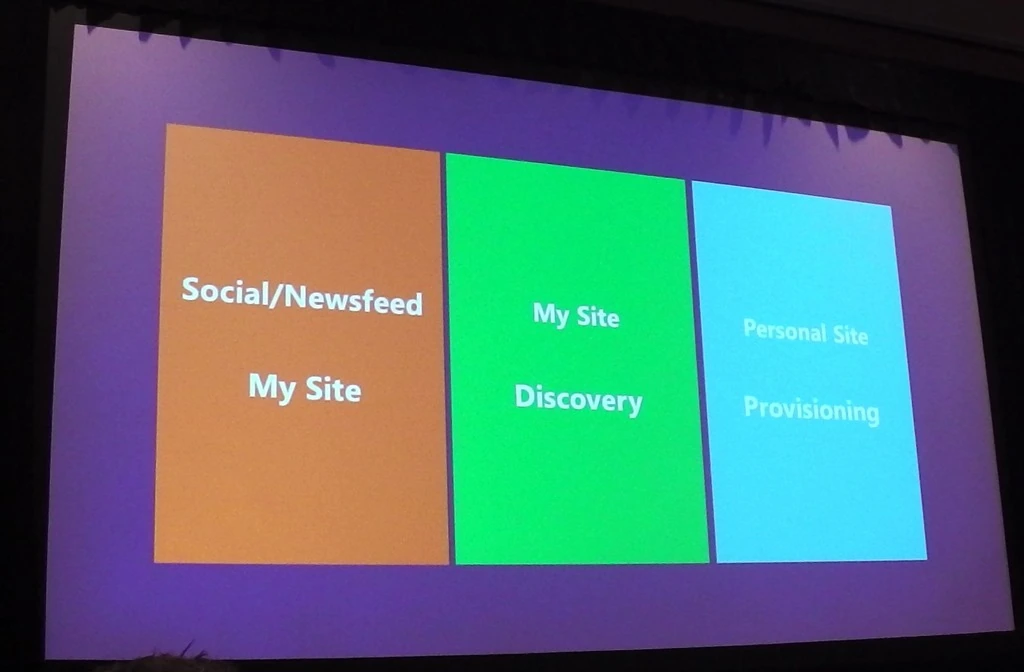

SPC12 agenda slide with three panels: Social/Newsfeed and My Site, My Site Discovery, and Personal Site Provisioning

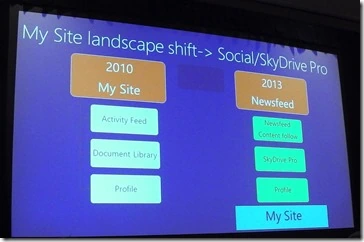

SPC12 slide comparing My Site in SharePoint 2010 with the SharePoint 2013 Newsfeed, SkyDrive Pro and Profile landscape

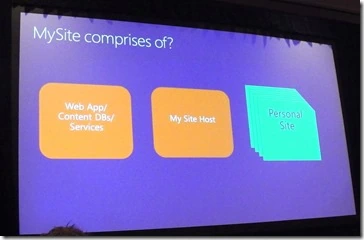

SPC12 slide showing what a My Site comprises: Web App and Content DBs, My Site Host and Personal Site

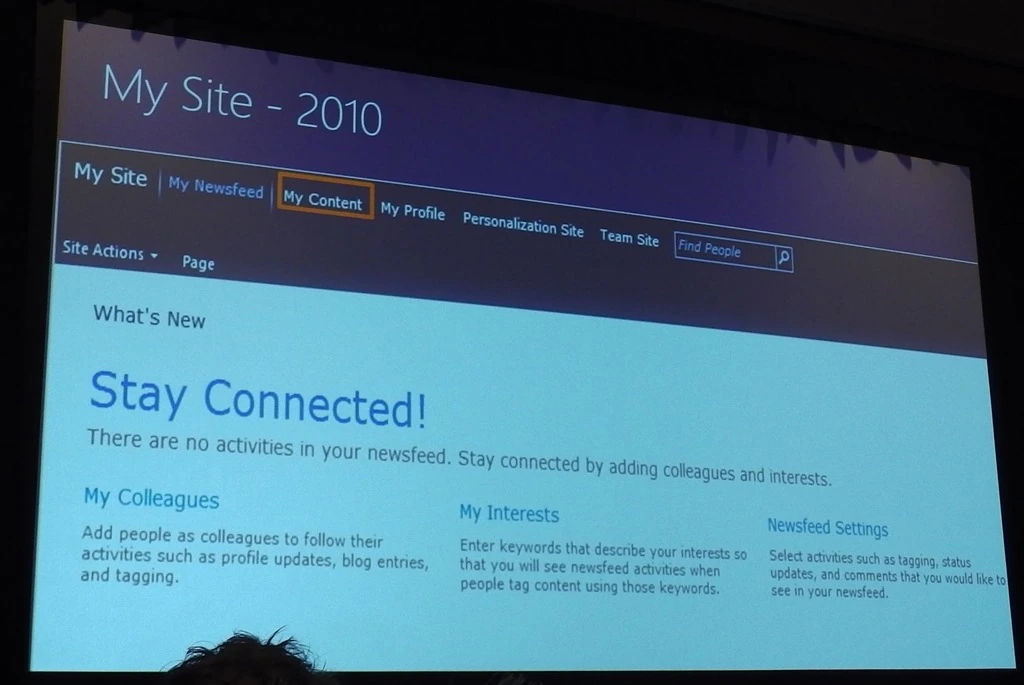

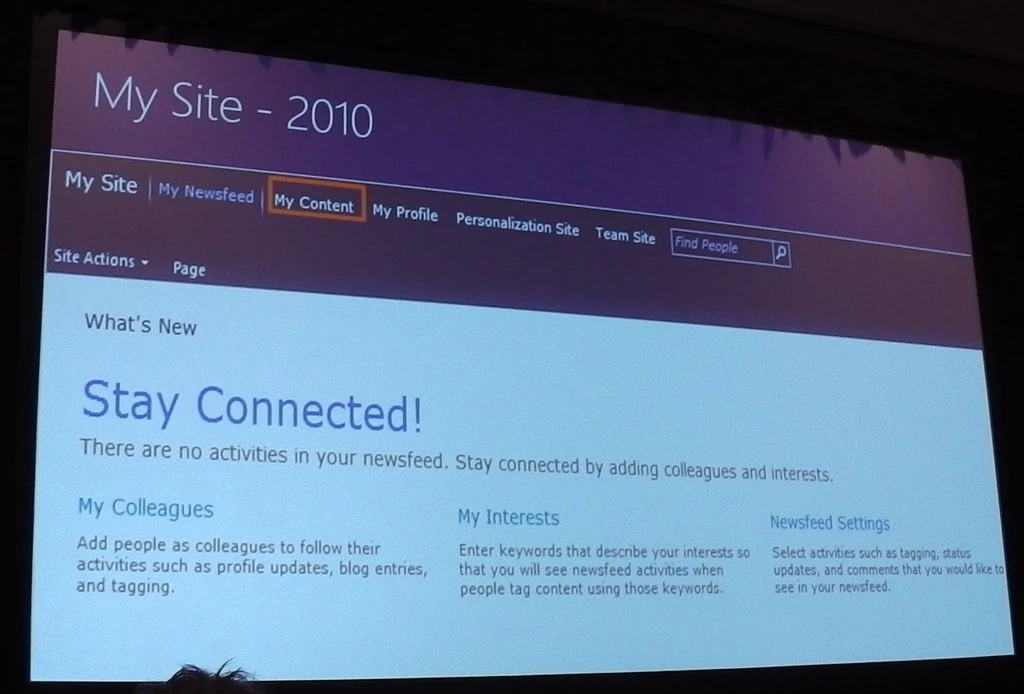

SPC12 slide showing the SharePoint 2010 My Site Stay Connected page with My Colleagues, My Interests and Newsfeed Settings

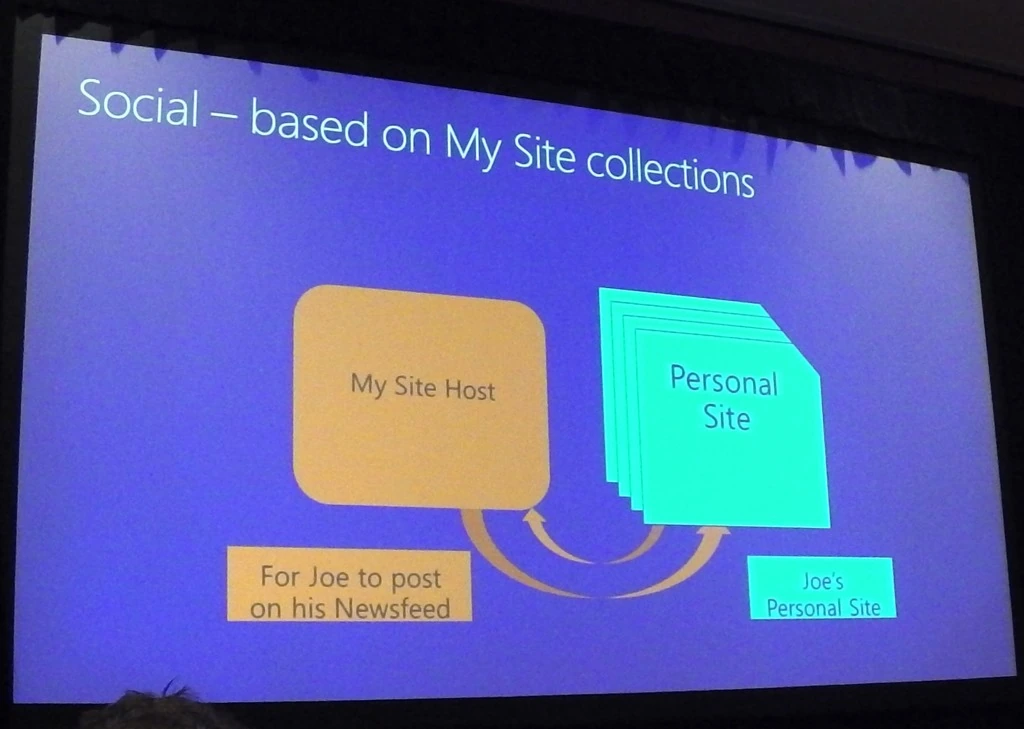

SPC12 slide on social based on My Site collections, with My Site Host and Personal Site boxes where Joe posts to his Newsfeed

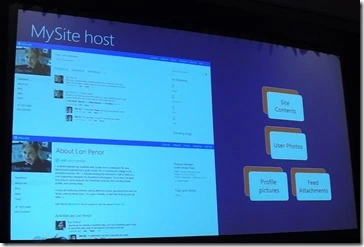

SPC12 slide showing the My Site Host with its Site Contents, User Photos, Profile Pictures and Feed Attachments

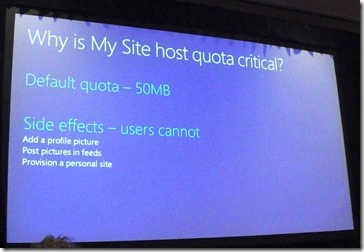

SPC12 slide on why the My Site Host quota is critical, with its 50MB default and the side effects for users

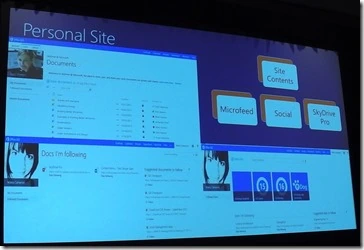

SPC12 slide showing the Personal Site with its Site Contents, Microfeed, Social and SkyDrive Pro components

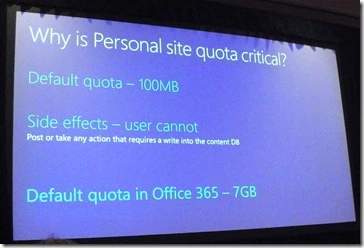

SPC12 slide on why the Personal Site quota is critical, with a 100MB default and a 7GB default quota in Office 365

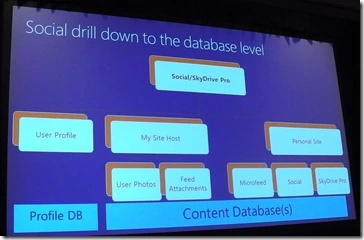

SPC12 slide mapping User Profile, My Site Host and Personal Site down to the Profile DB and Content Databases

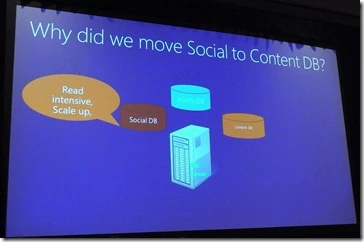

SPC12 slide asking why social moved to the Content DB, noting the Social DB is read intensive and scales up

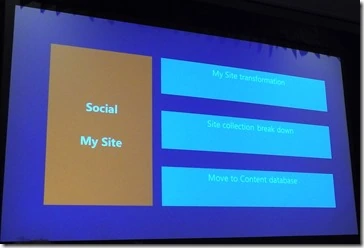

SPC12 Social and My Site section slide covering My Site transformation, site collection breakdown and the move to Content DB

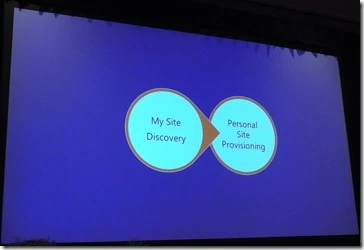

SPC12 slide linking My Site Discovery with Personal Site Provisioning

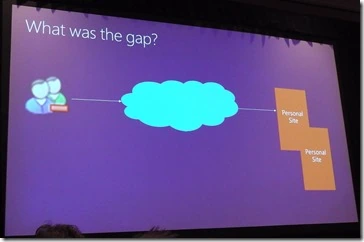

SPC12 slide asking what was the gap, with a user connected through a cloud to two Personal Site boxes

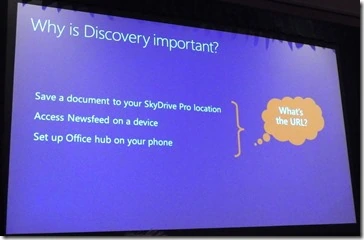

SPC12 slide on why Discovery matters: saving to SkyDrive Pro, the Newsfeed on a device and the Office hub on a phone

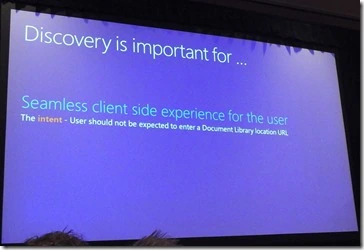

SPC12 slide stating My Site Discovery gives a seamless client side experience, so users never type a Document Library URL

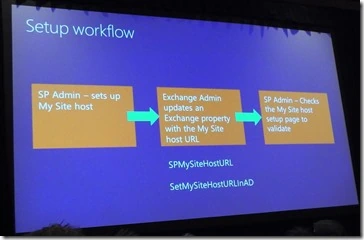

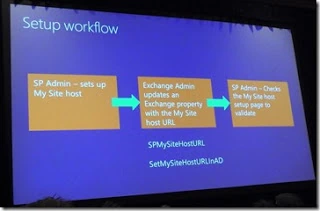

SPC12 setup workflow slide: SP Admin creates the My Site Host, Exchange Admin sets the URL with SPMySiteHostURL and SetMySiteHostURLInAD

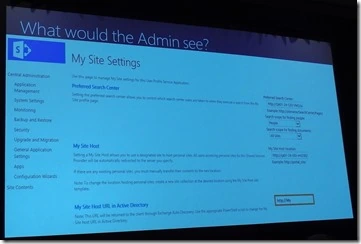

SPC12 slide showing the My Site Settings page in SharePoint Central Administration as the admin sees it

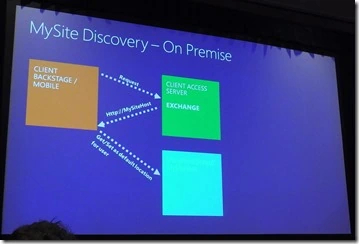

SPC12 diagram of on premises My Site Discovery between the client backstage or mobile app and the Exchange client access server

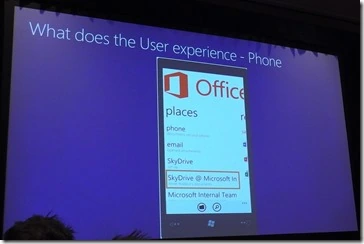

SPC12 slide showing the Windows Phone Office hub user experience with SkyDrive @ Microsoft listed under Places

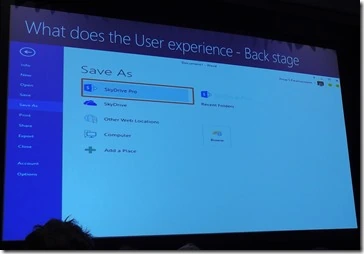

SPC12 slide showing the Office backstage Save As experience with SkyDrive Pro listed as a save location

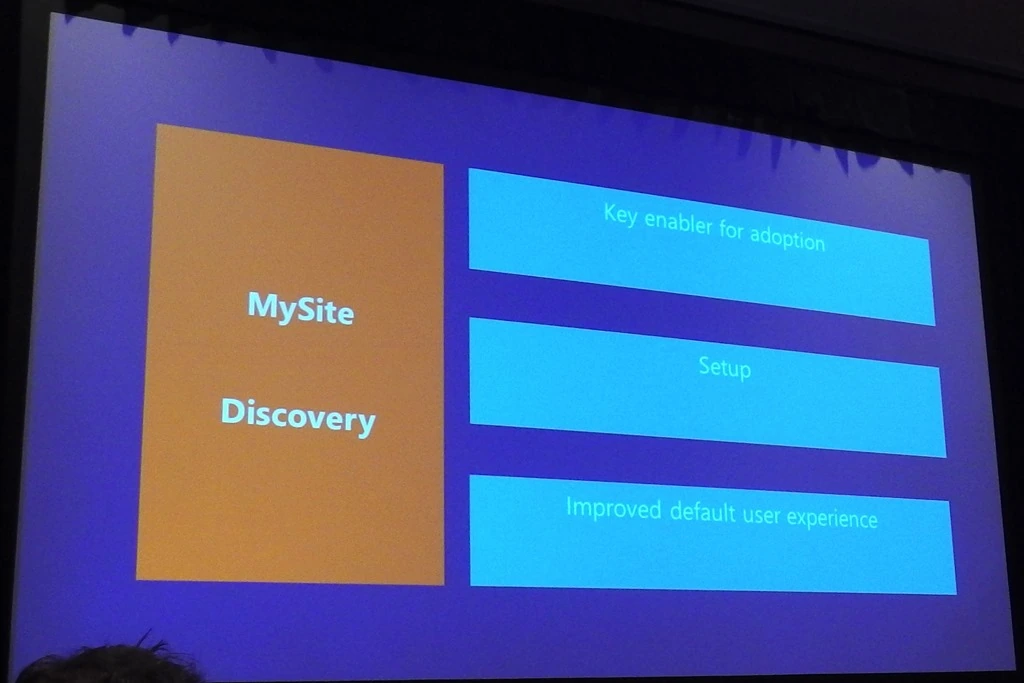

SPC12 My Site Discovery agenda slide listing key enabler for adoption, setup, and improved default user experience

SPC12 My Site Discovery slide revisiting the SharePoint 2010 Stay Connected newsfeed page with My Colleagues, My Interests and Newsfeed Settings

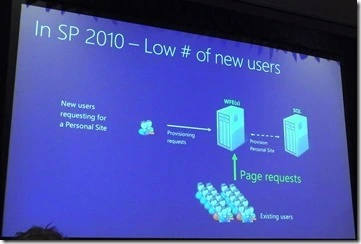

SPC12 slide on SharePoint 2010 with few new users: provisioning requests go to the WFE and SQL while existing users send page requests

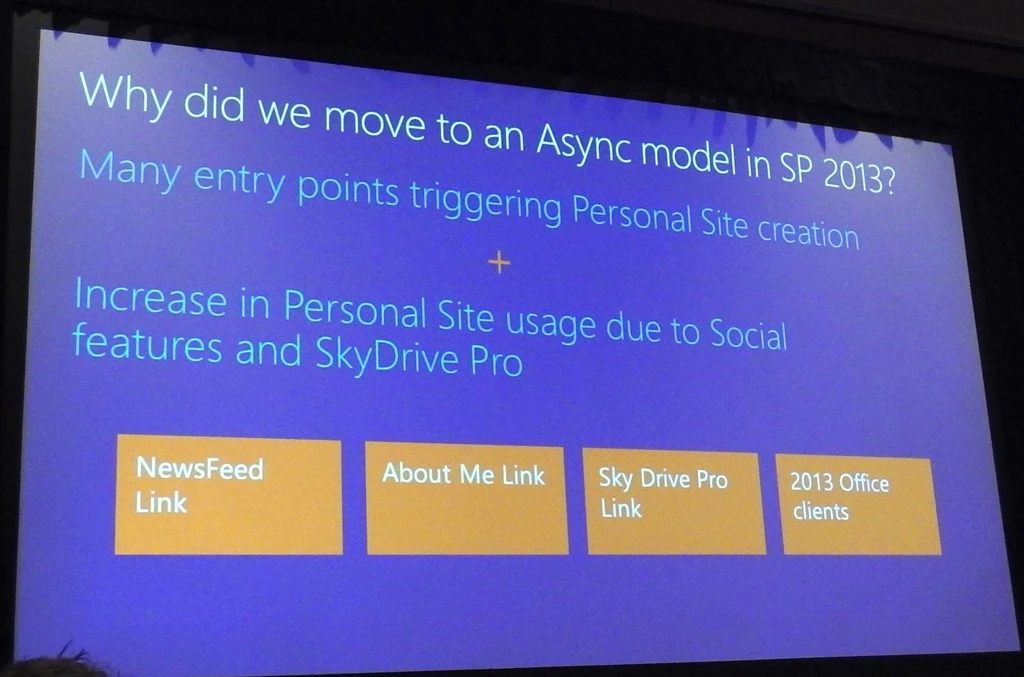

SPC12 slide on why SharePoint 2013 went async: Newsfeed, About Me, SkyDrive Pro links and Office 2013 clients trigger Personal Site creation

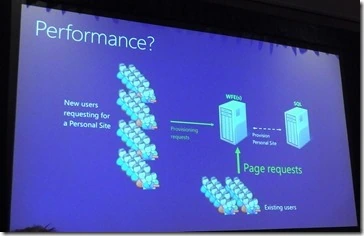

SPC12 Performance? diagram of new user Personal Site provisioning requests flooding the WFE alongside existing users' page requests

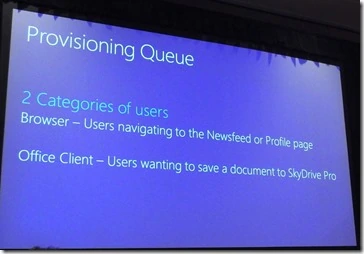

SPC12 Provisioning Queue slide: browser users opening the Newsfeed or Profile page, and Office client users saving to SkyDrive Pro

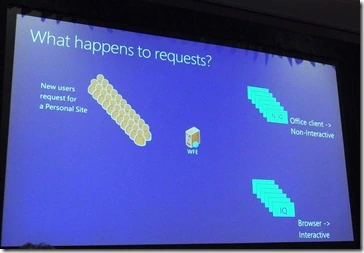

SPC12 slide on Personal Site requests at the WFE splitting into a non-interactive Office client queue and an interactive browser queue

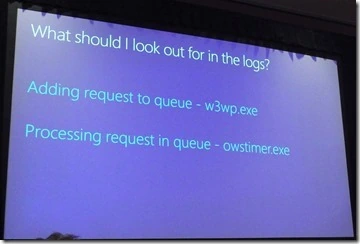

SPC12 slide on what to look for in the logs: adding request to queue comes from w3wp.exe, processing request in queue from owstimer.exe

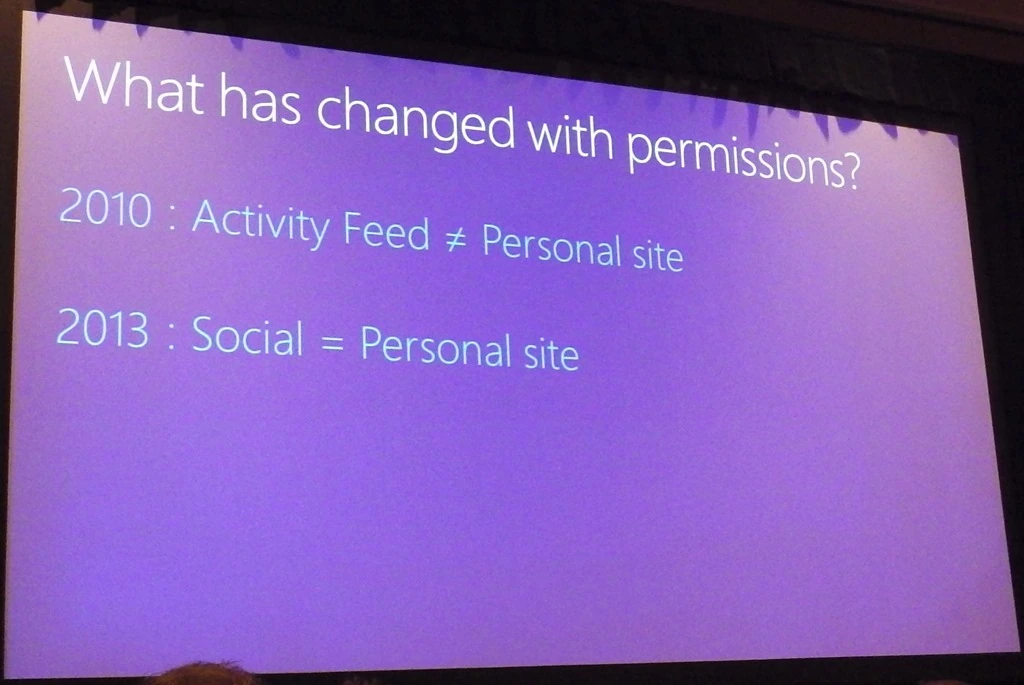

SPC12 slide on permission changes, with the 2010 Activity Feed separate from the Personal Site while in 2013 Social equals Personal Site

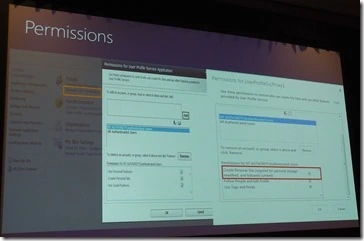

SPC12 slide of User Profile Service Application permissions in Central Administration with Create Personal Site highlighted

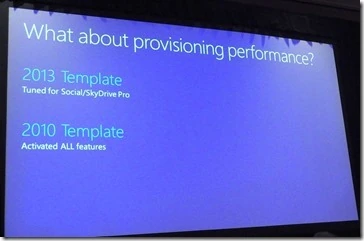

SPC12 slide on provisioning performance: the 2013 template is tuned for Social and SkyDrive Pro, the 2010 template activated all features

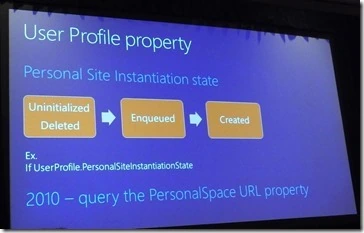

SPC12 slide on the PersonalSiteInstantiationState property moving from Uninitialized or Deleted to Enqueued to Created, versus the 2010 PersonalSpace URL

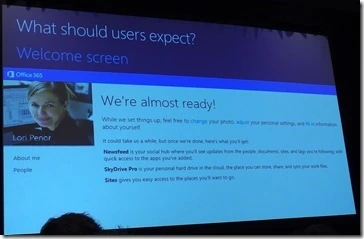

SPC12 slide showing the SharePoint 2013 We're almost ready welcome screen users see while their Personal Site is provisioned

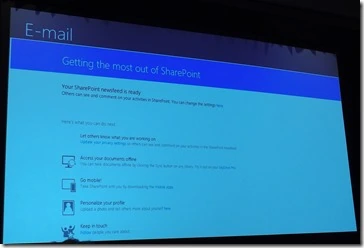

SPC12 slide showing the Getting the most out of SharePoint e-mail sent when a user's Newsfeed and Personal Site are ready

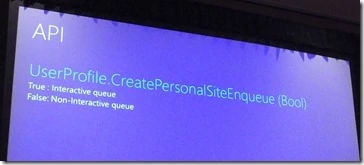

SPC12 slide on the UserProfile.CreatePersonalSiteEnqueue(Bool) API, true for the interactive queue and false for the non-interactive queue

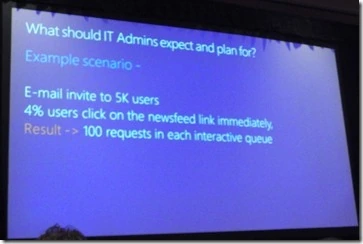

SPC12 slide for IT admins: an e-mail invite to 5K users with 4% clicking the Newsfeed link means 100 requests in each interactive queue

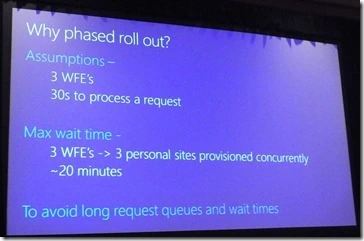

SPC12 slide on why a phased roll out: with 3 WFEs and 30 seconds per request the max wait is about 20 minutes, so phase to avoid long queues

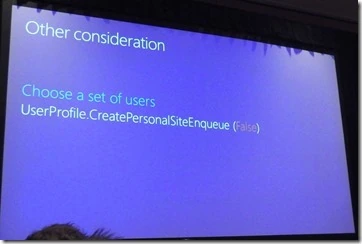

SPC12 slide on other considerations: choose a set of users and call UserProfile.CreatePersonalSiteEnqueue(False)

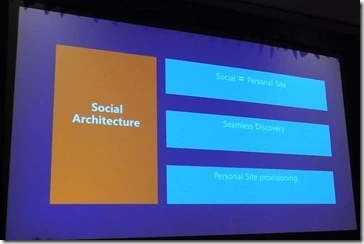

SPC12 Social Architecture summary slide covering Social equals Personal Site, seamless discovery and Personal Site provisioning

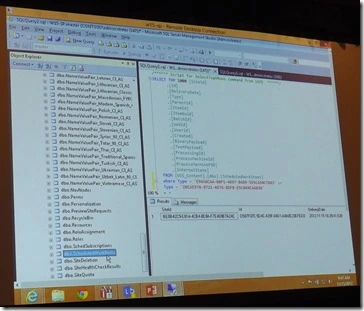

SPC12 demo of SQL Server Management Studio querying SharePoint 2013 content database tables

SharePoint 2013 Central Administration Timer Job Status page at SPC12 with the My Site Instantiation Interactive Request Queue job highlighted

Edit Timer Job page for the My Site Instantiation Interactive Request Queue job at SPC12, recurring schedule set to weekly

Timer Job Status page in SharePoint 2013 Central Administration at SPC12, listing the My Site Instantiation request queue jobs

Recurring schedule options on the Edit Timer Job page for the My Site Instantiation Interactive Request Queue job at SPC12

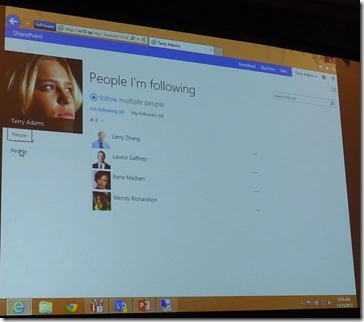

SharePoint 2013 People I'm Following page for Terry Adams listing followed colleagues, projected at SPC12

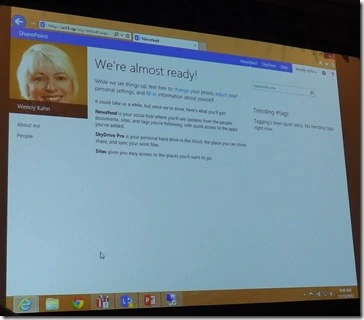

SharePoint 2013 My Site We're almost ready page for Wendy Kahn shown during the My Site provisioning demo at SPC12
